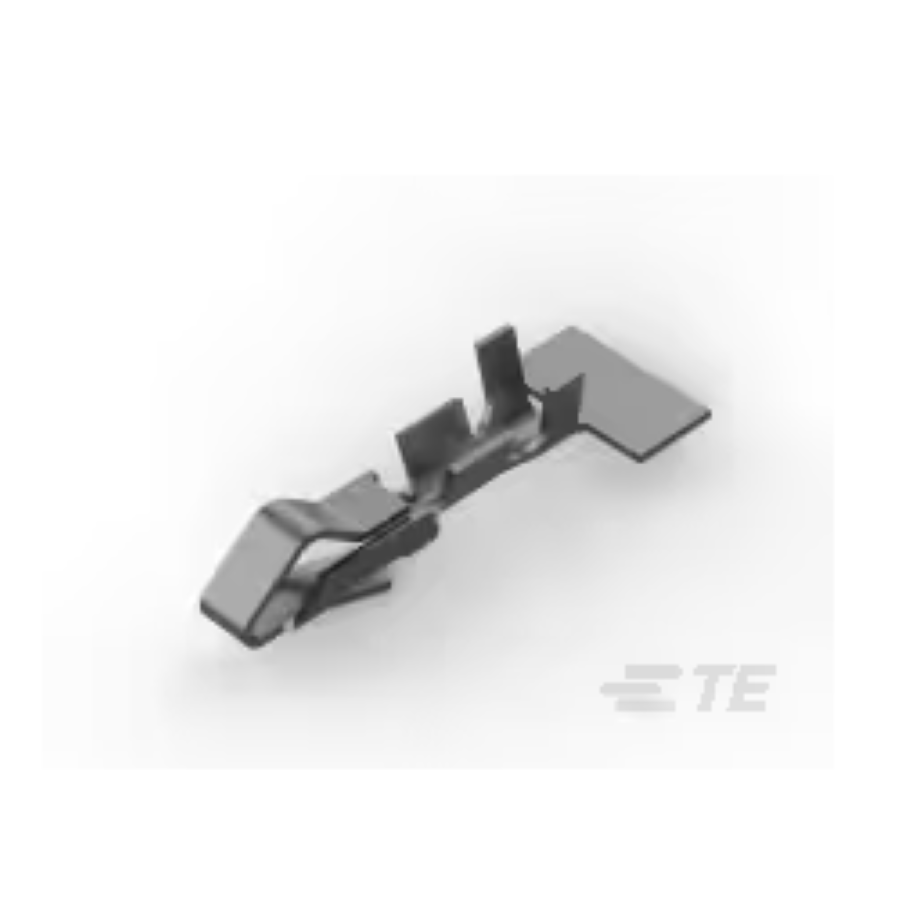

640252-2
Manufacturer:
TE Connectivity
Mfr.Part #:
640252-2
Datasheet:
Description:
Headers and Wire Housings Cable Header
| Parameter | Value |
|---|---|
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 3.56 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Current Rating | 4 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Header |
| Wire/Cable Gauge | 24 AWG |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Standard |
| Contact Resistance | 3 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 6.5 A |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.794 mm |
| Plating Thickness | 330 nm |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 865
Distributors
pcbx
pcbxUnit Price$0.09016
Ext.Price$0.09016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.09016 | $0.09016 |
| 10 | $0.04508 | $0.45080 |
| 50 | $0.03468 | $1.73400 |
| 100 | $0.02668 | $2.66800 |
| 500 | $0.02342 | $11.71000 |
| 1000 | $0.02056 | $20.56000 |
| 3000 | $0.01897 | $56.91000 |
| 5000 | $0.01750 | $87.50000 |
| 10000 | $0.01614 | $161.40000 |
| 30000 | $0.01489 | $446.70000 |
| 50000 | $0.01374 | $687.00000 |
| 100000 | $0.01267 | $1267.00000 |
